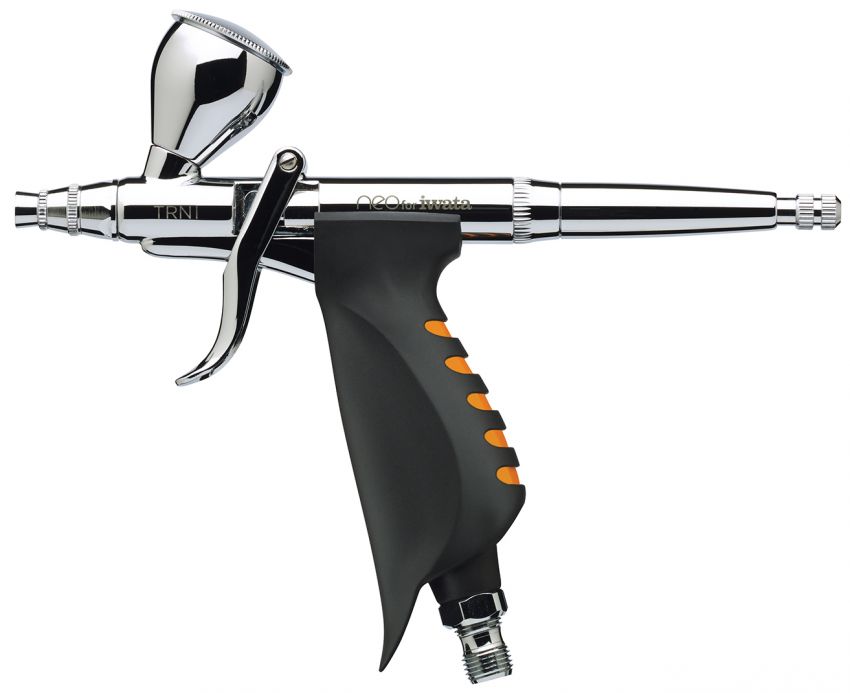

NEO for Iwata TRN1 Gravity Feed Trigger Airbrush

NEO for Iwata TRN1 Gravity Feed Trigger Airbrush


Shop Local

Shop Local Dealers near you for more competitive prices.


NEO for Iwata TRN1 Gravity Feed Trigger Airbrush spray chart image
NEO For Iwata Series airbrushes are designed to deliver soft, effortless coverage at low air pressures, making them an easy choice for many types of spray applications.

NEO For Iwata TRN1 Gravity Feed Dual Action Trigger Airbrush comes with interchangeable 0.24 oz / 7 ml cup with lid and 0.10 oz / 3 ml fluid cup.

Fine atomization is achieved with the smallest air compressors, making NEO an affordable option for general purpose spraying and for anyone wanting to airbrush for the first time.

Effortless Coverage is one of our 5 Ways to Spray categories. Who Sprays with Effortless Coverage? Makers and creators who...

  • Spray medium range detail and coverage area
  • Want great atomization at low air pressures
  • Have beginner to high-level airbrush skills
  • Want many feature and model options
  • Are hobbyists or professional painters

Doesn't sound like you? Check out all of our 5 Ways To Spray categories or take our Airbrush Selector Quiz to find your next Iwata!

Technical Info

Spray Performance Category Effortless Coverage
Series NEO for Iwata
Spray Scale Fine to Wide
Optimal Working Pressure 08 - 20 psi (0.06 - 0.14 Mpa)

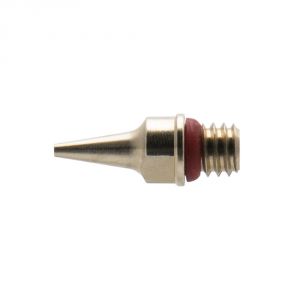

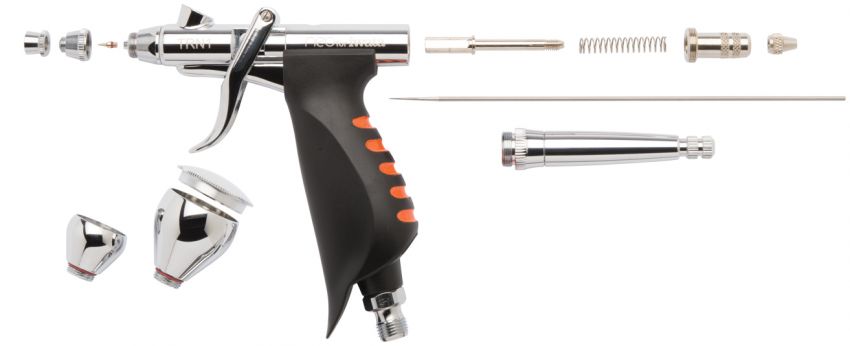

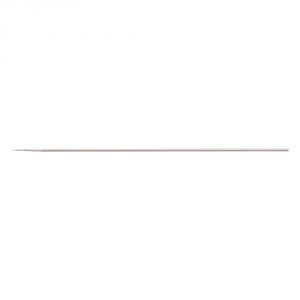

Head System N3 - Needle, Needle Cap, Nozzle, Nozzle Cap
Nozzle Type Screw-On
Feed Style Gravity
Paint Capacity  0.24 oz (7.0 ml)
Paint Capacity0.10 oz (3.0 ml)
Action Dual
Handle Type Standard
Net Weight (lbs) 0.40
Net Weight (kg) 0.18
Assembled Dimensions (in) 0.88 x 6.19 x 4.00
Assembled Dimensions (mm) 22 x 157 x 102
