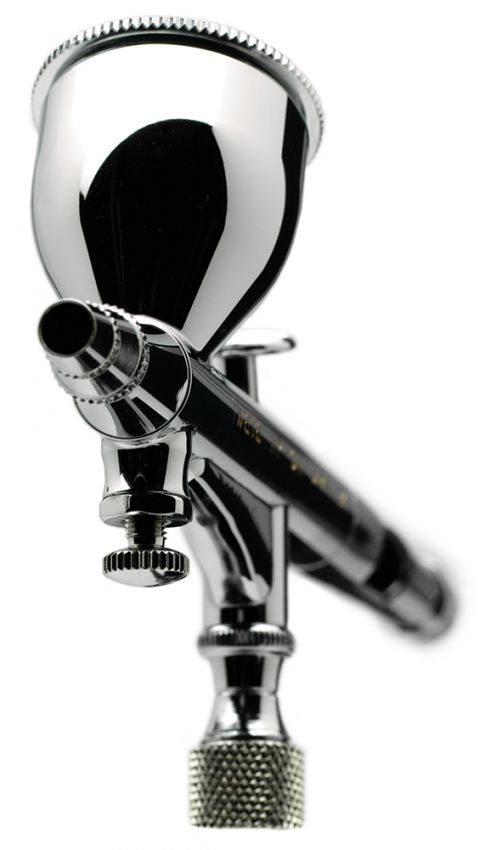

Iwata Hi-Line HP-CH Gravity Feed Dual Action Airbrush
H4100

Iwata Hi-Line HP-CH Gravity Feed Dual Action Airbrush

$347.25

Shop Local

Shop Local Dealers near you for more competitive prices.

Overview

Iwata Hi-Line HP-CH Gravity Feed Dual Action Airbrush spray chart image
Offering total control for fine detail spraying, Iwata's Hi-Line Series, with its Micro Air Control (MAC) Valve enables incremental control of airflow and easy adjustment for a fine to medium spray. Using the MAC Valve, easily create stipple effects by turning the valve to restrict air flow.

Iwata Hi-Line HP-CH has a 0.24 oz / 7 ml cup that is ideal for color mixing. The Quick Flush Cutaway Preset Handle allows easy access to the Needle so that you can quickly empty the paint reservoir for cleaning. The preset feature allows you to set the spray output, which increases your control while reducing finger fatigue. Iwata's Spring-Steel Needle resists breakage and our Needle Packings are solvent resistant for longevity.

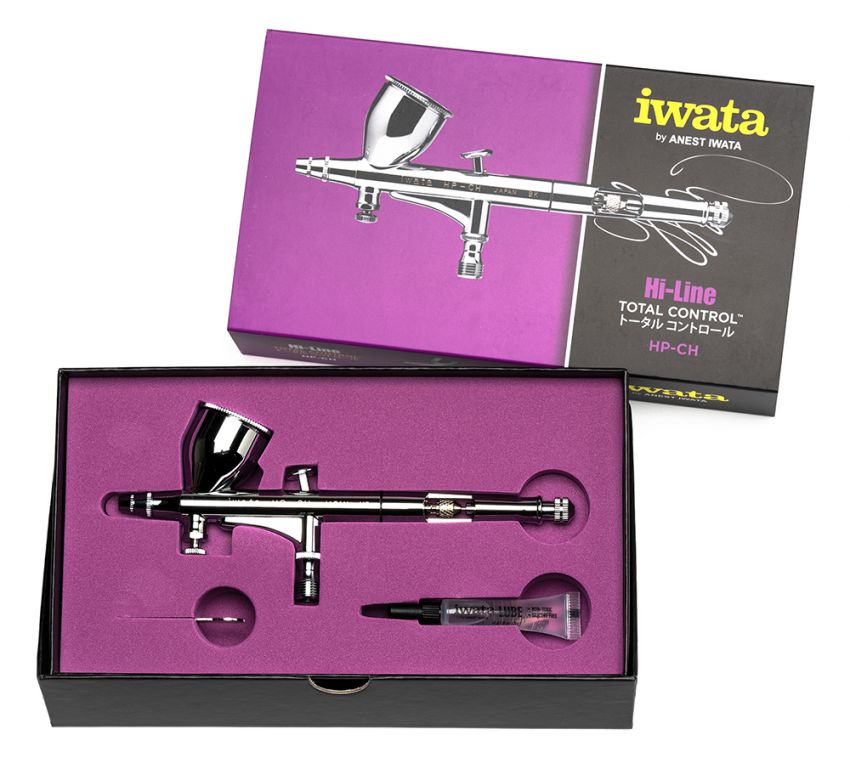

Also included is our Iwata Nozzle Spanner that is used to remove the Nozzle for cleaning and Iwata Lube, which lubricates the Needle and Main Lever mechanism. Iwata Hi-Line Series doesn't just change air pressure instantly — it changes the way you airbrush.

Total Control is one of our 5 Ways to Spray categories. Who sprays with Total Control? Makers and creators who...

  • Paint with fine to medium level of detail and scale
  • Have beginner to high-level airbrush skills
  • Are hobbyists or professional painters

Doesn't sound like you? Check out all of our 5 Ways To Spray categories or take our Airbrush Selector Quiz to find your next Iwata!

Technical Info

Spray Performance Category Total Control
Series Hi-Line
Spray Scale Fine to Medium
Optimal Working Pressure 15 - 25 psi (0.10 - 0.17 Mpa)
Head System H3 - Needle, Nozzle, Nozzle Cap
Nozzle Type Screw-On
Feed Style Gravity
Paint Capacity 0.24 oz (7 ml)
Action Dual
Handle Type Single Cut, Pre-Set
Net Weight (lbs) 0.24
Net Weight (kg) 0.11
Assembled Dimensions (in) 1.10 x 6.10 x 2.68
Assembled Dimensions (mm) 28 x 155 x 68
